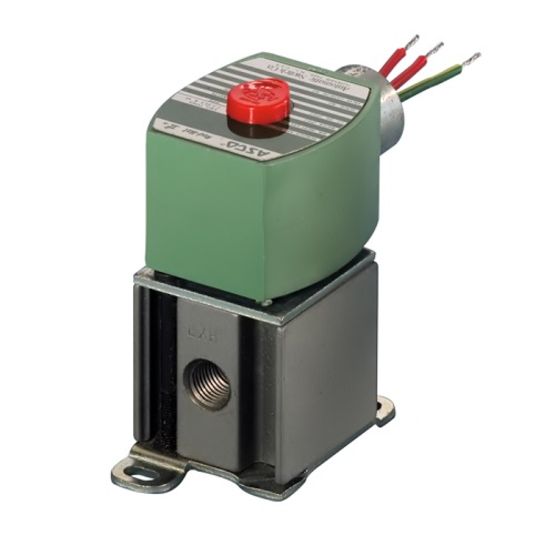

ASCO Valve 8340 Air 4-way 1/4" Solenoid Valves
The ASCO Series 340, also known as 8340, 4-way 1/4″ line of solenoid valves incorporate an air-only design for cylinder control. Up to eight single and dual-solenoid valves can be installed in a manifold in any combination. The valves are suitable for analytical and diagnostic equipment, dust collector systems, heating equipment, refining applications.
Prices Starting at $100.00
Shop ASCO 8340 Valves
ASCO 8340 Valve Specs
- Valve Actuation
- Solenoid – Direct Acting
- Body Material
- Aluminum
- Media
- Air, Inert Gas
- Pipe / Port Size
- 1/4 “
- Port Type
- NPTF
- Function
- 4 way – 4/2
- Flow
- From .05-.1 Cv
- Voltage
- 24 AC, 110 AC, 120 AC, 440 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 AC
- Max Differential / Max Operating Pressure
- Vacuum to 150 PSIG
- Standards / Regulations
- CSA, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, UL
- Standards / Regulations
- CSA, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL
ASCO 8340 Valve Features
- Can be factory assembled or grouped in the field with the supplied snap-on clamps
- Group-mounted constructions have common pressure connections at each end and separate cylinder and exhaust connections
- Aluminum body with stainless internal parts for long lifecycle operation
- Ambient temperature range: AC: 32° F to 125°F (0° C to 52° C) DC: 32° F to 77° F (0° C to 25° C)
