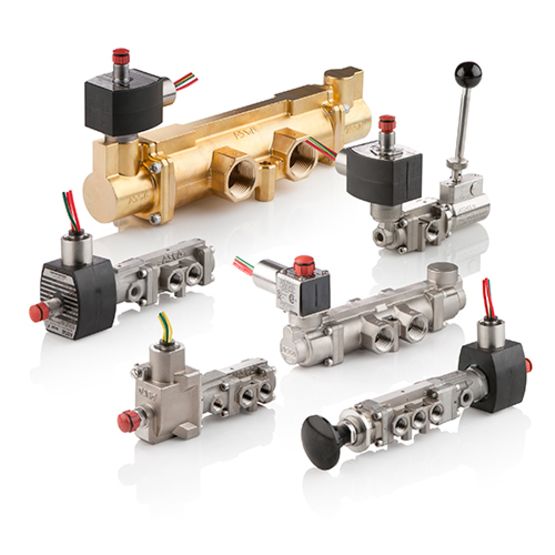

ASCO Valve 8362 3-Way Solenoid Spool Valves
The ASCO Series 362, also known as 8362, 3-way 2-position spool valves are designed for valve piloting in the upstream, midstream, and downstream oil and gas markets. The valves incorporate ASCO´s proven solenoid technology for unequaled reliability in mission-critical applications. The Series 362 is a three-way valve made for single-acting process valve applications. It is available in 1/4-inch through 1-inch, brass and 316L stainless steel constructions for corrosion resistance in harsh environments.
Prices Starting at $100.00
Shop ASCO 8362 Valves
ASCO 8362 Valve Specs
- Valve Actuation
- Pneumatic – Air Pilot, Pneumatic – Latching, Solenoid, Solenoid – Direct Acting, Solenoid – Latching
- Body Material
- Stainless Steel, Brass
- Media
- Air, Inert Gas, Natural Gas
- Pipe / Port Size
- 1/4 “; 3/8 “; 1/2 “; 3/4 “; 1 “
- Port Type
- NPTF
- Function
- 3 way – 3/2 Normally Closed, Closed Center, 3 way – 3/2 Normally Open, 3 way – 3/2 Normally Closed
- Flow
- From 1.8 to 15.5 Cv (1.55 to 13.4 Kv)
- Voltage
- 120 AC, 12 DC, 24 DC | 50, 60
- Max Differential / Max Operating Pressure
- Vacuum to 150 PSIG
- Operating Environment
- Corrosive, Hazardous, Outdoor
- Standards / Regulations
- Class I Div 1, Type 4X, Type 6, Type 6P, UL
ASCO 8362 Valve Features
- Delivers the industry’s best flow per pipe size with a 2 Cv for 1/4-inch size and a 15.5 Cv for 1″
- Low-power solenoid versions are available with UL, CSA, ATEX, and IECEX hazardous location approvals that consume only 1.4 watts. A 0.55-watt solenoid option is ideal for remote applications requiring alternate energy sources
- Extensive manual and low-temperature models are suitable for harsh application environments
- Solenoid options with factory-sealed leads reduce installation cost
