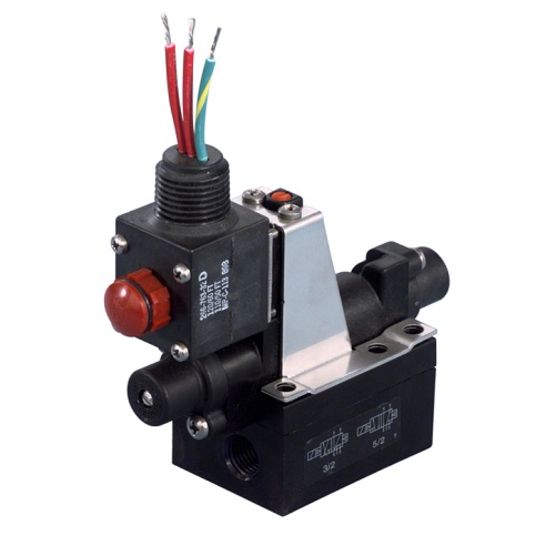

ASCO Valve 8401 Air Slide Pilot-Operated Valve
The ASCO Series 401, also known as 8401, is a line of pilot-operated air slide valves designed for air and inert gas service in heating equipment applications. The aluminum valves incorporate a unique sliding and sealing member that provides a durable and non-stick sealing method. Optional flow control regulates cylinder speed in either direction and permits adjustable Cv from 0.2 to 0.8.
Prices Starting at $100.00
Shop ASCO 8401 Valves
ASCO 8401 Valve Specs
- Valve Actuation
- Solenoid – Air Pilot
- Body Material
- Aluminum
- Media
- Air, Inert Gas
- Pipe / Port Size
- 1/4 “
- Port Type
- NPTF
- Function
- 4 way – 5/2
- Flow
- From 0.5 Cv to 1.0 Cv, From .43 to .86 Kv
- Voltage
- 24 AC, 110 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 AC, 120 AC | 50, 50/60, 60
- Max Differential / Max Operating Pressure
- Vacuum to 150 PSIG
- Operating Environment
- Indoor, Outdoor
- Standards / Regulations
- CSA, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL
ASCO 8401 Valve Features
- Dual solenoid versions hold last position, even after loss of electric power. Solenoid may be energized momentarily (1/10 second) or continuously
- Standard manual operator both momentary and maintained
- Sub-base and manifold mounting for installation flexibility; direct-mount constructions are available
- Watertight Types 1, 2, 3, 3S, 4, and 4X and explosion-proof and watertight Types 3, 3S, 4, 4X, 6, 6P, 7, and 9 offer reliable operation in challenging environments
