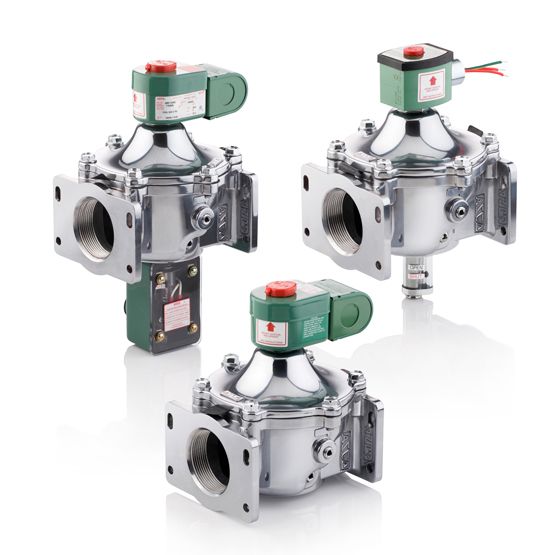

ASCO Valve 8214 High-Flow Gas Shut Off Solenoid Valves
The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. A double-solenoid gas train provides an exceptionally small footprint for space constrained applications. The valves are ideal for natural gas fired boilers, furnaces, grain dryers, kilns, gas generators and commercial kitchen/cooking equipment.
Prices Starting at $160.00
Shop ASCO 8214 Valves
ASCO 8214 Valve Specs
- Valve Actuation
- Solenoid
- Body Material
- Aluminum
- Media
- Air, Inert Gas, Liquid Propane Gas, Natural Gas, Oxygen
- Pipe / Port Size
- ¾ “; 1 “; ¼ “; ½ “; 2 “; ½ “; 3 “
- Port Type
- NPTF
- Function
- 2 way – 2/2 Normally Closed, 2 way – 2/2 Normally Open
- Flow
- From 6.0 Cv to 14.0 Cv;Over 14.0 Cv, From 5.19 to 12 Kv;Over 12 kv
- Voltage
- 110 AC;115 AC;12 DC;120 AC;120 DC;208 AC;220 AC;230 AC;24 AC;24 DC;240 AC;240 DC;440 AC;48 DC;480 AC;6 DC | 50/60
- Max Differential / Max Operating Pressure
- Hazardous; Indoor; Outdoor
- Operating Environment
- Hazardous, Indoor, Outdoor
ASCO 8214 Valve Features
- Low pressure drop and extremely high flow capacity make the valve ideal in low gas supply pressure applications and locations
- Visual indication of open and shut position meets NFPA and FM requirements for visual indication
- Proof of closure switch meets agency/code requirements for an electrical interlock of valve closed position
- Two-way normally closed gas shutoff valves in pipe sizes 3/8″ to 3″
- Two-way normally open gas vent vales in pipe sizes 3/8″ to 2-1/2″
- 1/8-inch NPT pipe taps with plugs provide easier routine testing
- Broad ambient range of -40?F to 140?F is ideally suited for frigid and hot environments
- Optional NPT threaded flange adapters allow direct piping that simplifies installation and maintenance
- Silicon-free constructions are available for painting/finishing applications
- UL, CSA, FM approvals
ASCO 8214 Valve Documents
- ASCO Valve 8214 Gas Shutoff Solenoid Valve (Watertight) Specifications
- ASCO Valve 8214 Gas Shutoff Solenoid Valve (General Purpose/Watertight) Specifications
- ASCO Valve 8214 Double Gas Shutoff Solenoid Valve for Gas Train Specifications
- ASCO Valve 8214 Gas Vent Solenoid Valve Specification
- ASCO Long Life Service Solenoid Valve Specifications
- ASCO Solenoid Valve Engineering Information
- ASCO Valve Optional Features
- ASCO Valve Terminology & Functions
