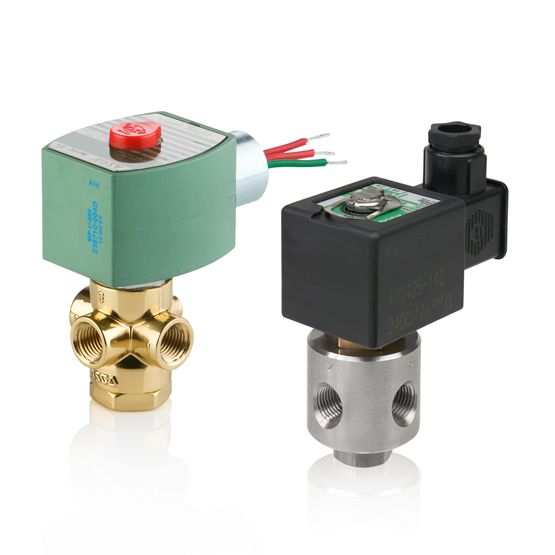

ASCO Valve 8320 Three-Way Solenoid Valves
General Service 3-Way Solenoid Valve Direct Acting Poppet Valves – 1/8″–1/4″ Direct acting valves available in normally closed, normally open, and universal constructions. Available either AC or DC operated with brass or stainless steel bodies. Covers broadest range of applications. All pipe connections in valve body to facilitate in-line piping. Brass or Stainless construction Threaded ends Sizes: 1/8″ – 1/4″
ASCO 3-Way Solenoid Valves have three pipe connections and two orifices. When one orifice is open, the other is closed and vice versa. 3-way solenoid valves are commonly used to alternately apply pressure to and exhaust pressure from a valve actuator or a single acting cylinder. The RedHat solenoid valve can be normally closed, normally open or universal.
Prices Starting at $100.00
Shop ASCO 8320 Valves
ASCO 8320 Valve Specs
- Valve Actuation
- Solenoid – Direct Acting
- Body Material
- Brass, Stainless Steel
- Media
- Air, Inert Gas, Light Oil, Water
- Pipe / Port Size
- 1/8 “; 1/4 “
- Port Type
- G ISO228/1-G BSPP
- Function
- 3 way – 3/2 Normally Closed, 3 way – 3/2 Normally Open, 3 way – 3/2 Universal
- Flow
- From .04 to .2 Kv, From .2 to .43 Kv
- Voltage
- 24 DC, 48 DC, 24 AC, 48 AC, 115 AC, 230 AC | 50
- Max Differential / Max Operating Pressure
- Vacuum to 10.3 Bar, Vacuum to 150 PSIG, More Than 34.5 Bar, More than 500 PSIG, 10.3-34.5 Bar, 150-500 PSIG
ASCO 8320 Valve Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum operating pressure differential required
- Available in brass and stainless-steel constructions
- Mountable in any position
- Long-life version eliminates metal-to-metal contact to extend life up to 20 million cycles in dry air or gas applications. Easily handles rapid cycling or continuous energization
- Harsh-environment model offers low power consumption plus quick shutdown of valves and actuators. Valves are UL, CSA, ATEX, and IIECEx certified
- RedHat Next-Generation model offers voltage-ranging with low-power operation. Valves have Class I, Division 2 coils
