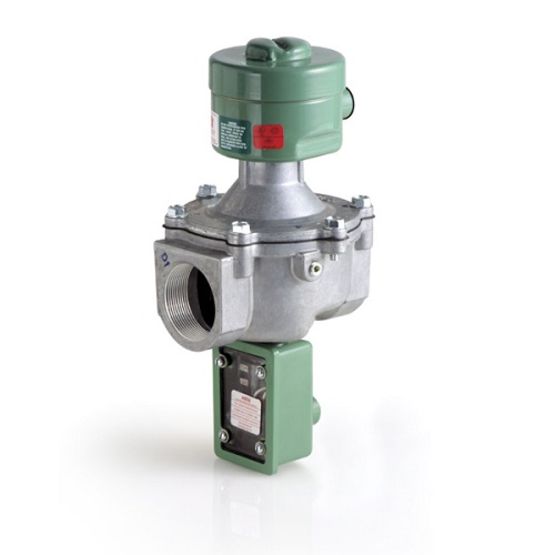

ASCO Valve 8043 Gas Shut Off Solenoid with Proof of Closure
The ASCO Series 043, also known as 8043, are 2-way, normally closed gas safety shut off solenoid valves for on-off control of fuel gas in commercial and industrial gas burners. The valves feature a unique double-disc design with over travel that provides redundant sealing for leak-tight operation. The Series 043 includes visual position indication and proof of closure.
Prices Starting at $160.00
Shop ASCO 8043 Valves
ASCO 8043 Valve Specs
- Valve Actuation
- Solenoid
- Body Material
- Aluminum
- Media
- Natural Gas
- Pipe / Port Size
- 3/4 “; 1 “; 1 1/4 “; 1 1/2 “; 2 “; 2 1/2 “; 3 “
- Port Type
- NPTF
- Function
- 2 way – 2/2 Normally Closed
- Flow
- From 2.0 Cv to 6.0 Cv; From 6.0 Cv to 14.0 Cv; Over 14.0 Cv
- Voltage
- 110 AC; 120 AC; 220 AC; 230 AC | 50/60
- Max Differential / Max Operating Pressure
- Vacuum to 150 PSIG
- Operating Environment
- Indoor, Outdoor
- Standards / Regulations
- CSA, FM, Type 1, UL, Type 4
ASCO 8043 Valve Features
- Opening and closing response times are less than 1 second
- Visual indication of open and shut position
- Proof of closure switch rated at 1 amp
- Zero-differential piloted diaphragm
- 1/8-inch NPT upstream and downstream pipe taps with plugs for routine testing
- 5-pound closing spring for high force shut-off
