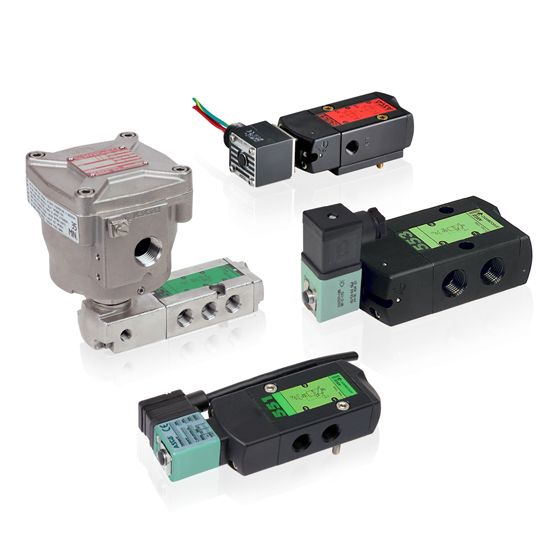

ASCO Valve 8553 1/4" Air Pilot Solenoid Spool Valves
The ASCO Series 553, also known as 8553, is a line of 1/2″ 3-way and 4-way compact solenoid spool valves that are ideal for controlling air or inert gas in challenging environments. The valves ’ unique design combines hard T-seals and flexible O-rings that provide bubble-tight shutoff, dirt resistance, and multi-million cycle reliability. The 553 Series comes in anodized aluminum, brass, and stainless steel bodies with ½-inch NPT and BSP connections. It is suitable for the harsh conditions found in chemicals, refining, food & beverage applications and life science processing.
Prices Starting at $160.00
Shop ASCO 8553 Valves
ASCO 8553 Valve Specs
- Valve Actuation
- Solenoid – Air Pilot
- Body Material
- Stainless Steel, Aluminum, Brass
- Media
- Air, Inert Gas
- Pipe / Port Size
- 1/2 “
- Port Type
- G ISO228/1-G BSPP, NPTF
- Function
- 3 way – 3/2 Normally Closed, 4 way – 5/2
- Flow
- From 2.0 Cv to 6.0 Cv, From 1.73 to 5.19 Kv
- Voltage
- 24 AC, 110 AC, 120 AC, 220 AC, 480 AC, 6 DC, 12 DC, 24 DC, 120 DC, 240 DC | 50, 60
- Max Differential / Max Operating Pressure
- Vacuum to 150 PSIG
- Operating Environment
- Corrosive, Hazardous, Indoor, Outdoor
- Standards / Regulations
- ATEX Zone 1-21, ATEX Zone 2-22, Class I Div 1, Class II Div 1, IP65, SIL, Type 1, Type 2, Type 3,Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL
ASCO 8553 Valve Features
- Available in two versions, mounted directly to actuators with NAMUR interface per VDI⁄VDE 3845 or threaded to mount on the pipe
- Valve body in Aluminum, Brass, or Stainless steel 316L
- Exhaust ports are pipeable, providing better protection against harsh environments
- DIN, watertight, and explosion-proof solenoids are available for use in mission-critical and hazardous areas
- Low-power constructions are ideal for remote and alternative power locations
- Integral breather block vents to spring side of the actuator to exhaust, preventing corrosion
- Single- and dual-solenoid constructions are available that mount in any position
- Compatible to Functional safety loop up to SIL 3
- All ports of NAMUR on the same side for a better water , DUST protection
- Available will all Explosion proof solenoids: Ex d, Ex mb, Ex ia/Ib, Ex e mb, NEMA
